TESTING

With a broad array of testing capability, Amphenol Printed Circuits provides the knowledge and equipment necessary to ensure your products are operating within anticipated design parameters. With a full suite of advanced testing equipment, supporting testing levels I thru IV, the Amphenol Advantage affords customers the broadest array of test solutions possible.

  • LEVEL 1

  • LEVEL 1

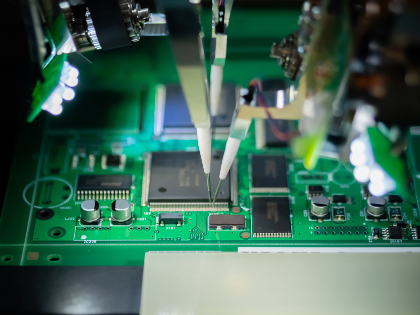

    FLYING PROBE

    ATG A7-16

    • Continuity Kelvin 4 Wire: 0.1mΩ - 300KΩ
    • Continuity 2 Wire: 2 – 10KΩ
    • Isolation: Up to 1000V
      • Up to 25MΩ (Field Measurement)
      • Up to 10GΩ (Resistive)
    • Embedded Component Test
      • Resistors, Capacitors, Inductors, Diodes
    • Latent Defect Testing
    • 24 x 39.4” Test Area
    • Soft Touch Probe Technology

    ATG A6-16

    • Continuity 2 Wire: 2 – 10KΩ
    • Isolation: Up to 500V
      • Up to 10GΩ (Resistive)
    • Embedded Component Test
      • Resistors, Capacitors, Inductors, Diodes
    • 24 x 24” Test Area
  • LEVEL 1

    BED OF NAILS

    Everett Charles 9090

    • 25.6 x 19.2” Single Density, Double Sided Grid
    • Continuity 2 Wire: 5 - 600 Ω
    • Isolation: Up to 250V
      • Up to 100MΩ
  • LEVEL 1

    OTHER TESTING OPTIONS

    Hipot

    • Automated (DITMCO 2115)
      • Up to 1500VDC
        • 1GΩ IR
    • Manual (Associated Research Hipot Ultra II 7540DT)
      • DC Withstanding
        • Up to 6000VDC
      • AC Withstanding
        • Up to 5000VAC
      • IR
        • Up to 1000VDC
    • Breakdown (Hipotronics 750-02-D149)
      • Up to 50KVAC

    Impendance

    • Polar RITS Robotic Impedance Station
    • Polar CITS 500s4 Manual Impedance Station

    Signal Integrity/TDR

    • Introbotix Accuprober HF50
      • Tektronix DSA8300 Analyzer
      • Tektronix 80e10B 50GHz TDR Sampling Heads
      • VNA (S-Parameter) Measurements up to 50GHz
      • SET2DIL/SET2SEIL Measurements up to 30GHz
      • SPP (Short Pulse Propagation) Measurements up to 50GHz

  • LEVEL 2

  • level 2

    Bed of Nails

    TTI 44K

    • Continuity 2 Wire: 5
    • 100Ω Isolation up to 250V
      • Up to 10GΩ
    • 24 x 18” Single Density, Single Sided Test area
    • Embedded Components
      • Resistors
      • All other components are protected from Isolation Voltage Only.
  • level 2

    CABLE TESTER

    Omni 2501

    • Continuity 2 Wire: 2 -999KΩ
    • Isolation: Up to 500V
      • Up to 500MΩ

  • LEVEL 3

  • level 3

    Bed of Nails

    In-Circuit Test (Assembly)

    • Seica Inc.
      • V8 Flying Probe
    • LCX Software
      • Takaya 9400 Flying Probe
      • Teradyne Test Station TS128LX

  • LEVEL 4

  • level 4

    Functional Test (Assembly)

    • Y-Tek FT100
      • +5V (1A), +12V(1A), -12V(1A), Programmable 0-10V(1A)
      • 40 Digital GPIO’s (TTL Switch Levels)
      • 8 Analog Inputs (0 – 10V or +/-5V) 12 Bit Resolution
      • 7 Outputs (0 – 10V or +/-5V) – 4 12 Bit Resolution.
